Chalkboarding: A New Spatiotemporal Query Paradigm for Sports Play Retrieval

Authors

Long Sha (QUT, Disney Research)
Patrick Lucey (STATS, Disney Research)
Yisong Yue (Caltech)
Peter Carr (Disney Research Pittsburgh)
Charlie Rohlf (STATS)
Iain Matthews (Disney Research Pittsburgh)

Intelligent User Interfaces (IUI) 2016

March 7, 2016

Chalkboarding- A New Spatiotemporal Query Paradigm for Sports Play Retrieval-Image1

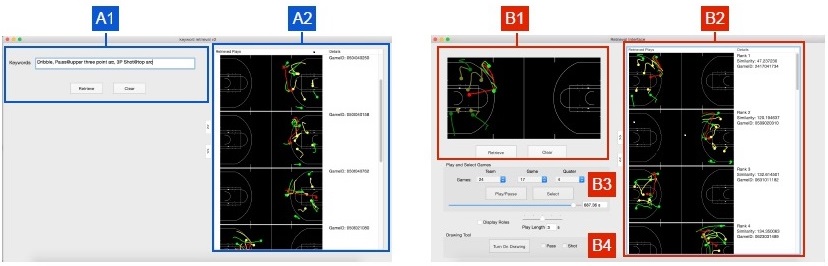

(a) Conventional methods for sports play access are based on “keywords” (A1), which lack specificity and requires the user to browse through a large collection before finding the specific plays of interest (A2). (b) To improve retrieval effectiveness, we instead use a “chalkboard” (B1), which is an intuitive and powerful query format that allows the user to specify plays similar to how a coach draws up plays, and can capture the rich semantics required for effective sports play retrieval (B2). The user can use the “selection tool“ (B3) to select specific trajectories, or use the “drawing tool” (B4) to draw a query.

The recent explosion of sports tracking data has dramatically increased the interest in effective data processing and access of sports plays (i.e., short trajectory sequences of players and the ball). And while there exist systems that offer improved categorizations of sports plays (e.g., into relatively coarse clusters), to the best of our knowledge there does not exist any retrieval system that can effectively search for the most relevant plays given a specific input query. One significant design challenge is how best to phrase queries for multi-agent spatiotemporal trajectories such as sports plays.We have developed a novel query paradigm and retrieval system, which we call Chalkboarding, that allows the user to issue queries by drawing a play of interest (similar to how coaches draw up plays). Our system utilizes effective alignment, templating, and hashing techniques tailored to multi-agent trajectories, and achieves accurate play retrieval at interactive speeds. We showcase the efficacy of our approach in a user study, where we demonstrate orders-of-magnitude improvements in search quality compared to baseline systems.





Download File "Chalkboarding- A New Spatiotemporal Query Paradigm for Sports Play Retrieval-Paper"
[pdf, 11.85 MB]
